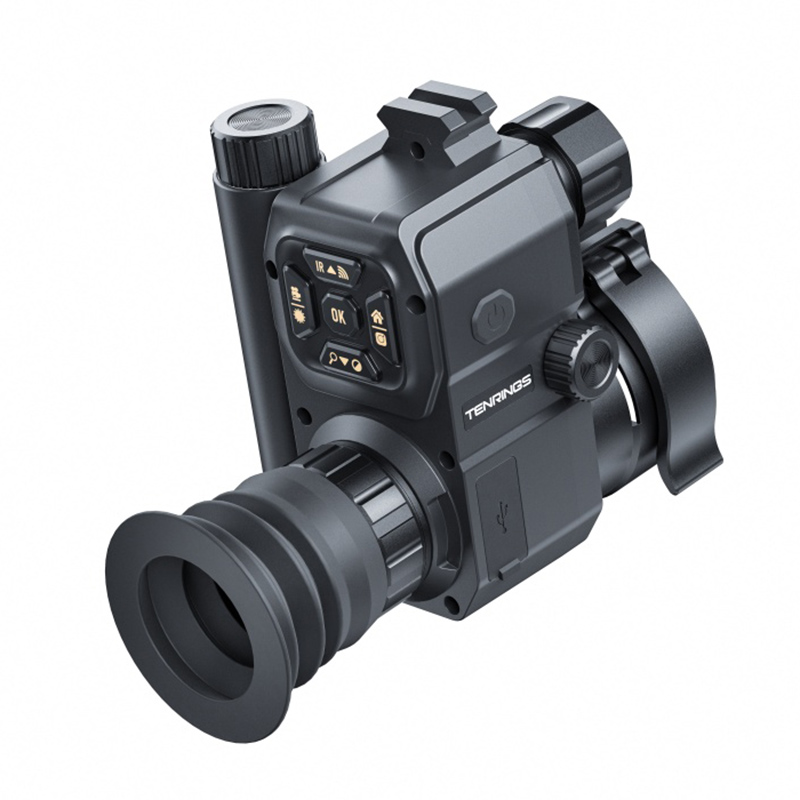

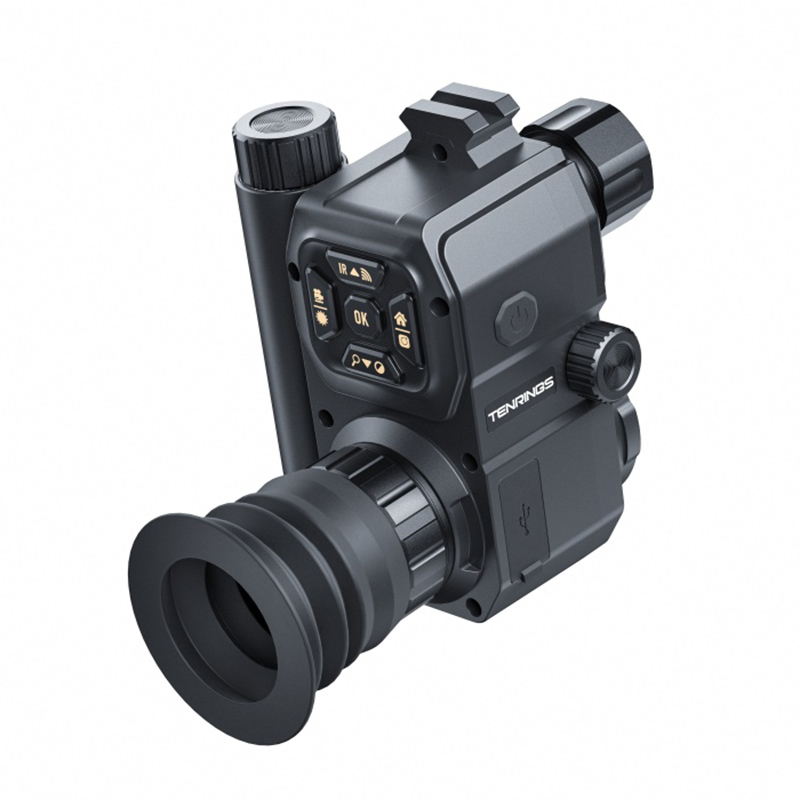

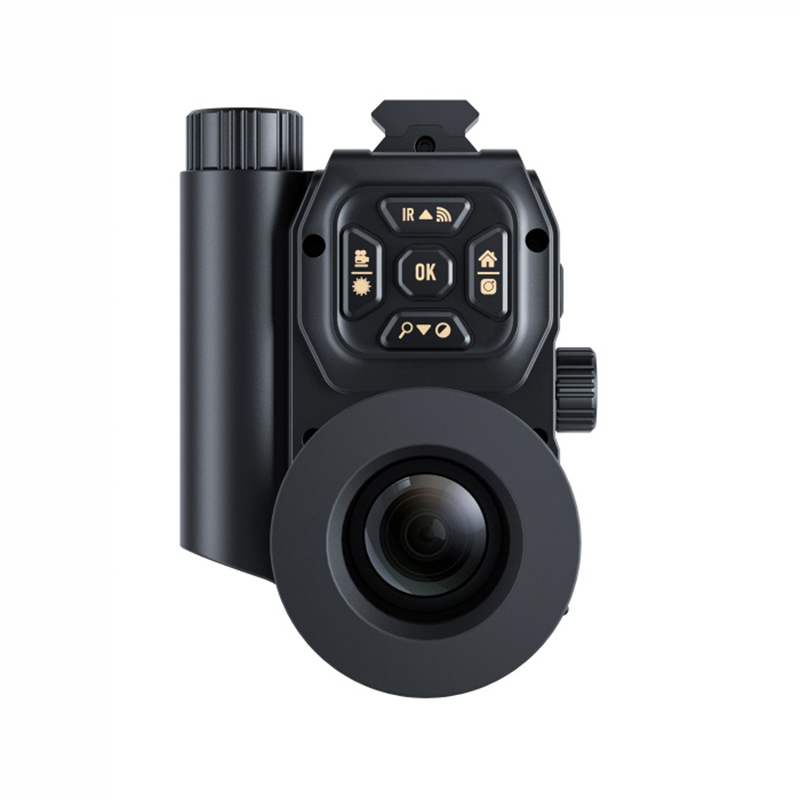

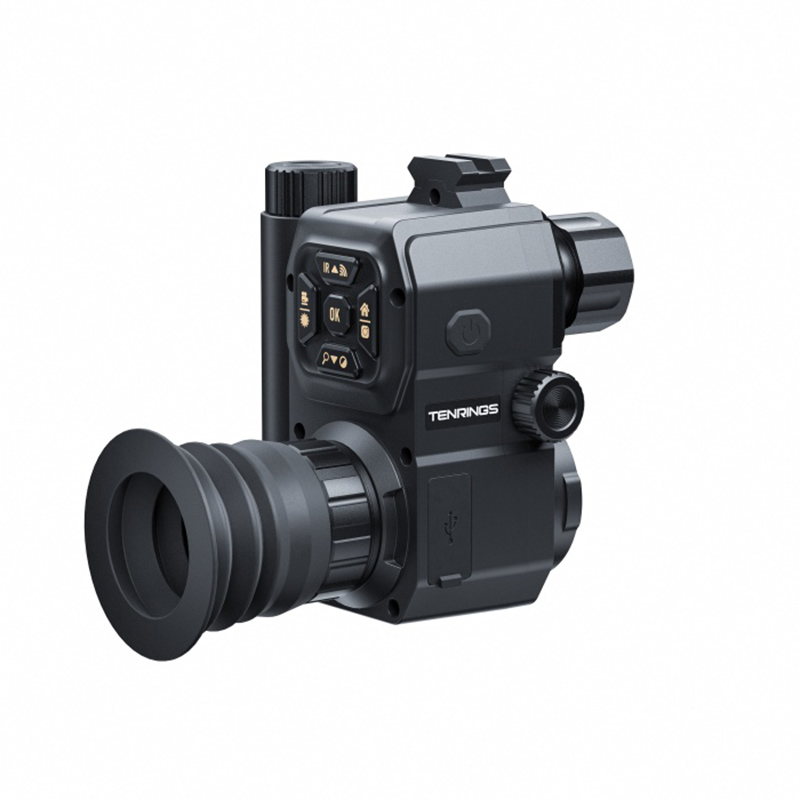

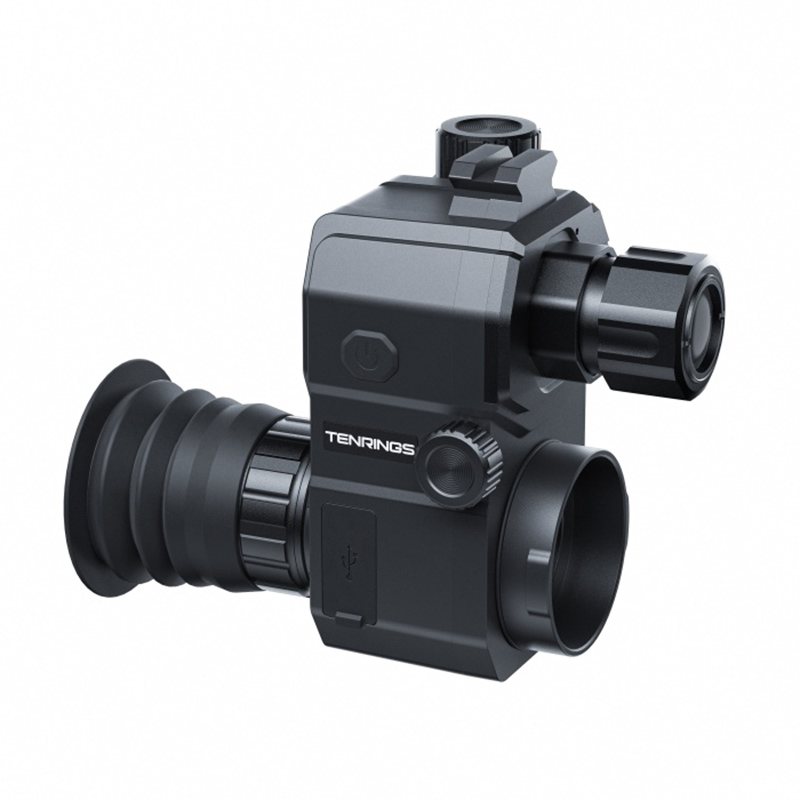

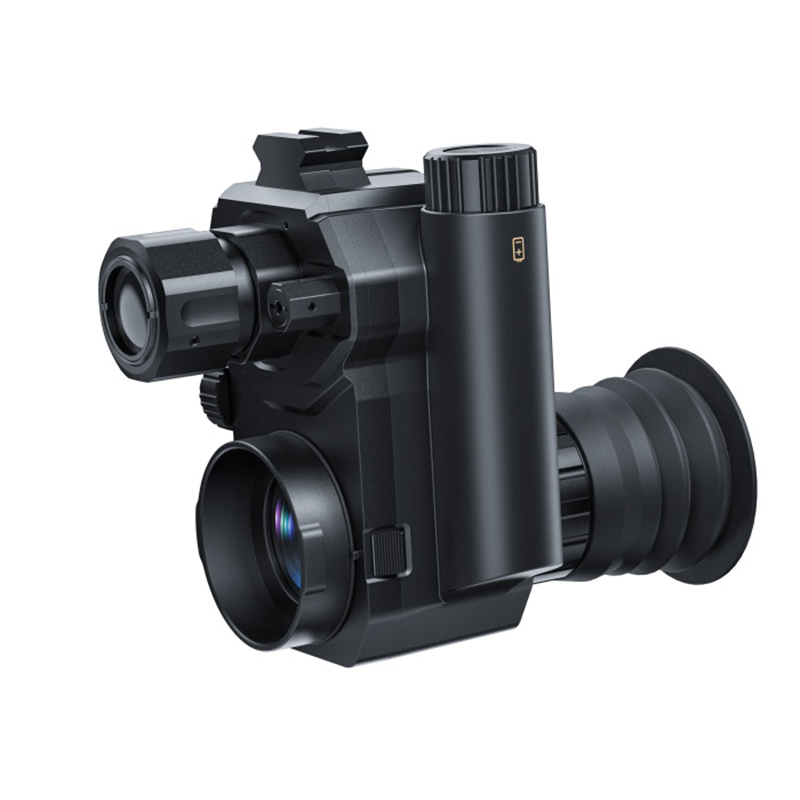

TR-IR NV200Pro
Features:
• In a completely dark environment, the farthest observation distance can reach 300 meters
• Built-in WiFi for downloading and sharing files on Android or IOS smartphones or tablets
• 1024x768 high-resolution display provides clear, rich and vivid color images
• Powered by one 18650 3.7V Li-ion battery for long continuous operation
• 1-5x image magnification, flexible selection according to distance
• Built-in IR-CUT two-color filter to restore the real image of day and night
• Built-in high-brightness, low-power dimmable IR illuminator, which can clearly restore the subject in the dark scene
• The infrared lens is not easy to react with metal oxides, acidic substances, air and water, and has good light transmission performance
Product Detail
TR-IR NV200Pro strengthens the waterproof design and reaches the protection level of IP67. Using a single built-in rechargeable battery with a low power consumption design, the continuous working time can reach more than 5 hours, meeting the requirement of using without changing the battery all night. In addition, it has advanced fast start-up performance, fast imaging in 3 seconds after booting, which significantly improves the user's quick response ability. The high refresh rate design enables the operator to obtain the ability to observe fast-moving targets. At the same time, it is equipped with high-quality and high-performance objective lens, making it safe and reliable without being afraid of strong light. When installed on a tripod for long-distance night observation, the night observation distance can reach 300 meters, and it can be connected to cameras, video cameras, and wireless image transmission equipment.
TR-IR NV200Pro is a rear clip-on model. The built-in WiFi module allows users to record and share videos, and comes with a Type-C interface for external power supply and data copying at the same time. It supports video recording and exporting. It is mainly used in outdoor night shooting, hunting, outdoor adventure, search and rescue, and can be clipped onto a sniper scope to complete night hunting.
|
Model |
TR-IR NV200Pro
|
|
|
Product Name |
Digital Day & Night Vision Scope
|
|
|
Power Supply |
Power Supply Mode |
One 3.7V Li-ion battery |
|
Voltage Range |
3.5-4.2V |
|
|
Power Consumption |
1W(IR is not turned on) |
|
|
Working Time with Battery |
≤8h |
|
|
Objective Lens Parameters |
Magnification |
2x |
|
Pixel
|
5M |
|
|
Focal Length
|
16mm (fixed focus), manual focus |
|
|
Objective Lens Size |
Φ16 |
|
|
Field of View |
22°×16° |
|
|
Eyepiece Lens Parameters |
Entrance Pupil Diameter |
6mm |
|
Magnification Power |
14x |
|
|
Eye Relief |
50 mm |
|
|
Operation Control |
Manual focus |
|
|
Focusing Angle Range |
-5D~+5D |
|
|
System Parameters |
Sensor Resolution |
4K (3840×2160) |
|
Internal RAM |
4Gb |
|
|
Video Resolution |
3840X2160@30fps |
|
|
Image Format |
JPG |
|
|
Display Resolution |
1024x768 |
|
|
Display Size |
OLED0.39″ |
|
|
WiFi |
802.11b/g/n |
|
|
Storage Type |
TF Card(Support 4G~128G) |
|
|
Infrared Power/Wavelength
|
2W/3W/5W three gears, 850nm/940nm |
|
|
Geomagnetism |
3-axis Gyroscope |
|
|
Reticle Shape |
Six Types |
|
|
Picture-in-Picture Enhanced Magnification |
Support |
|
|
Video Transmission |
HDMI/WiFi |
|
|
Type-C Interface |
Battery Charge and Data Transfer |
|
|
Language |
Chinese / English / Spanish / Portuguese / French / German / Italian / Polish / Turkish / Russian
Turkish / Russianan
Chinese/English/Spain/Portugal/French/German/Italian/Russian |
|
|
Connection Adapter |
Size |
≥48mm |
|
Reliability |
Mean Time Between Failures |
>50000h |
|
Mechanical Properties |
Dimensions (L*W*H) |
143*82*113(mm) |
|
Housing |
Plastic & Aluminium Alloy |
|
|
Body Color |
Black |
|
|
Net Weight |
≈330g |
|
|
Working Environment |
Operating Temperature |
-25℃~50℃ |
|
Storage Temperature |
-30℃~75℃ |
|
|
|
|
|
|
|
TR-IR-LRF NV200Pro: 1pc
|
USB Type-C Adapter Cable: 1pc |
Battery Charging Stand: 1pc |
Connection adapter: 1pc |
|
|
|
|
|
|
Rubber shims: 5pcs |
screwdriver: 1pc |
Velvet pouch: 1pc |
User Manual |
