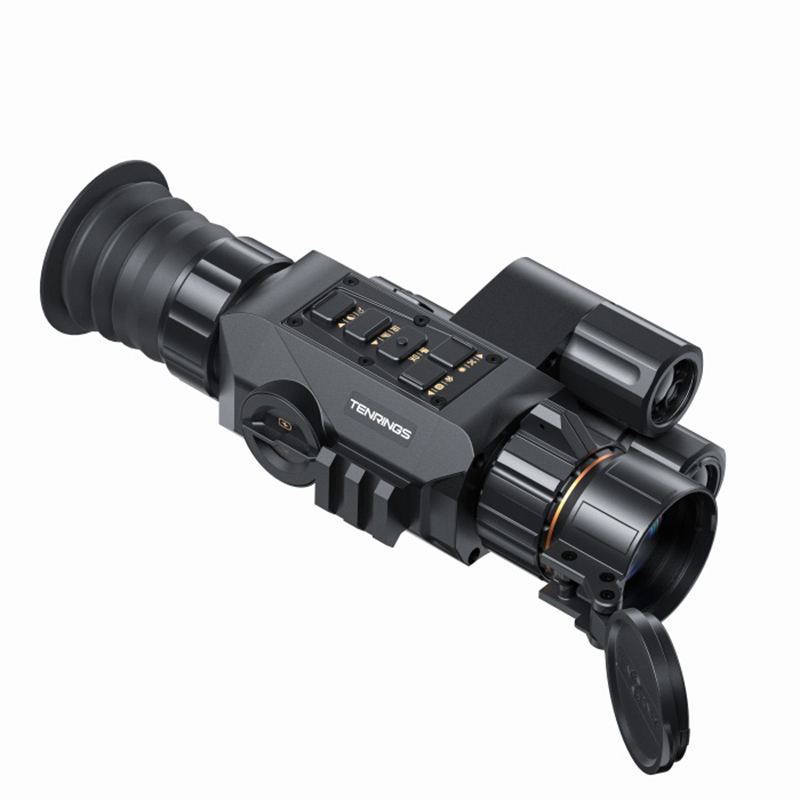

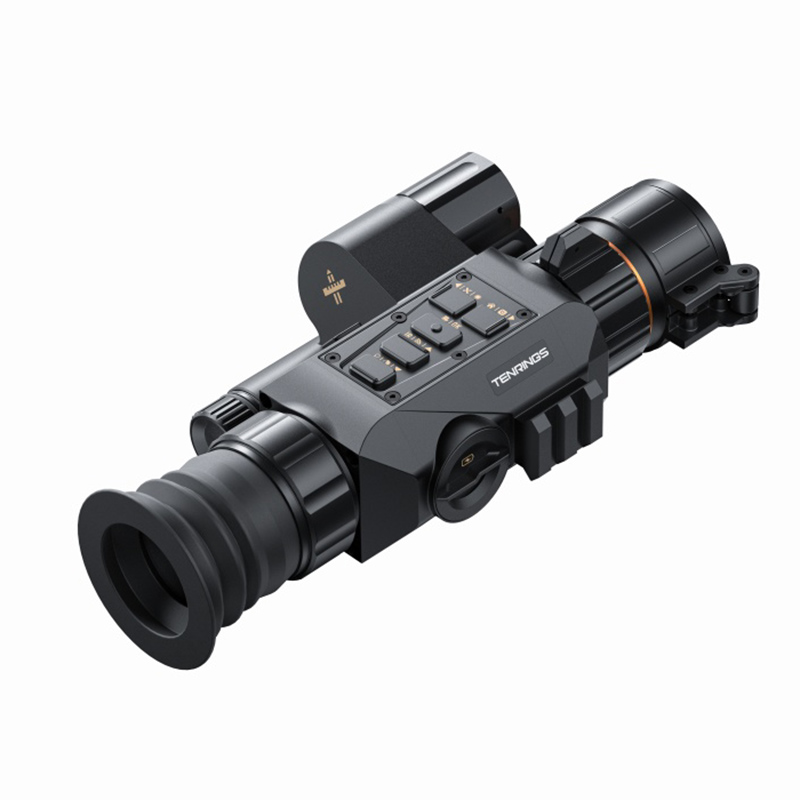

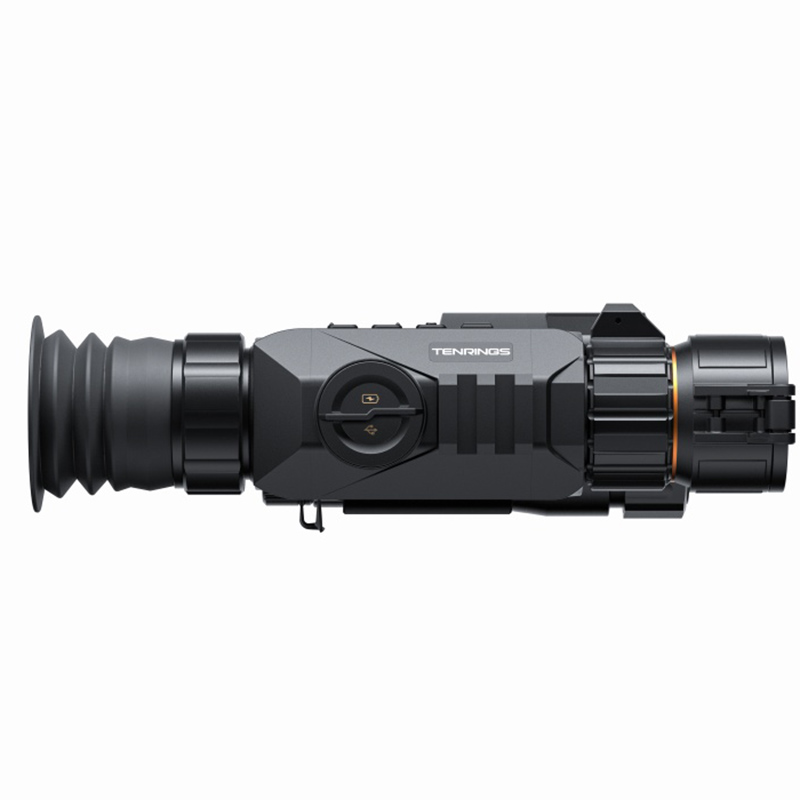

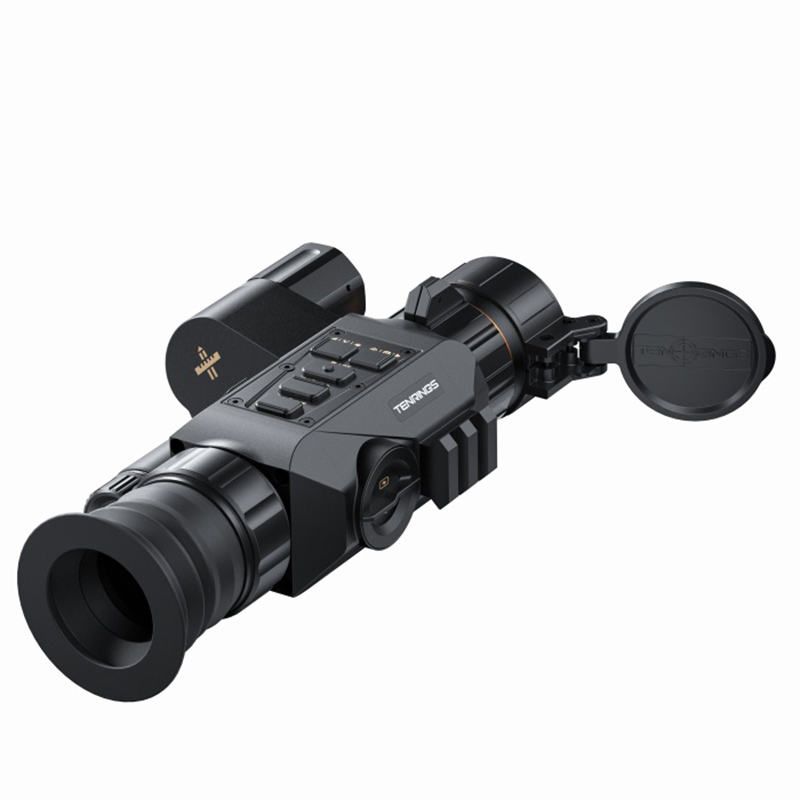

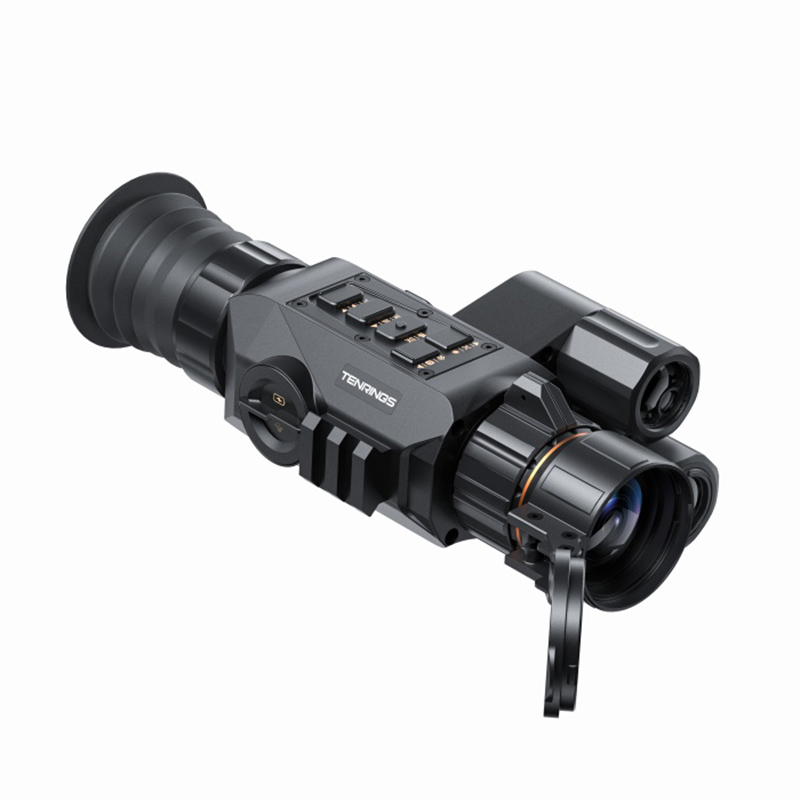

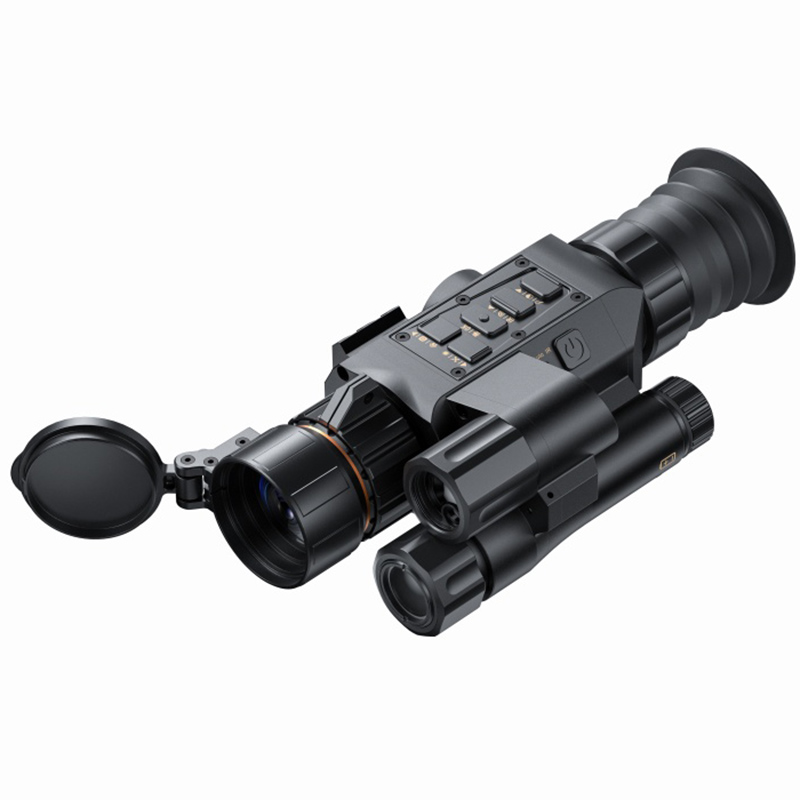

TR-IR-LRF NV501Pro
Features:
•In a completely dark environment, the farthest observation distance can reach 300 meters
•Built-in WiFi for downloading and sharing files on Android or IOS smartphones or tablets
•1024×768 high-resolution display provides clear, rich and vivid color images
•Powered by one18650 3.7V Li-ion battery for long continuous operation
•1-5x image magnification, flexible selection according to distance
•Built-in IR-CUT two-color filter to restore the real image of day and night
•With infrared laser ranging function, the longest distance can reach 1000m
•Built-in high-brightness, low-power dimmable infrared IR illuminator, which can clearly restore the subject in the dark scene
•The infrared lens is not easy to react with metal oxides, acidic substances, air and water, and has good light transmission performance
Product Detail
The built-in light brightness detection sensor can automatically switch between day and night modes according to the light intensity of the environment. TR-IR-LRF NV501Pro integrates the laser ranging finder to accurately grasp the target distance while observing or shooting and the ranging distance can reach 1000m. TR-IR-LRF NV501Pro strengthens the waterproof design and reaches the protection level of IP67. Using a single built-in rechargeable battery with a low power consumption design, the model can continuously work up to 8 hours. In addition, it has advanced fast start-up performance, fast imaging in 3 seconds after booting, which significantly improves the user’s quick response ability. The high refresh rate design enables the users to observe fast-moving targets effectively. At the same time, equipped with high-quality and high-performance objective lens, it ensures safety and reliability without fear of strong light. When installed on a tripod for long-distance night observation, the night observation distance can reach 300 meters, and it can be connected to cameras, video cameras, and wireless image transmission equipment. At the same time, it integrates the ranging function, and realizes the accurate grasp of the target distance while observing.
TR-IR-LRF NV501Pro is designed with a 3.5-17.5x(5x)35mm digital rifle scope, equipped with a detachable 905nm infrared rangefinder module, which can provide accurate testing of the target distance. The built-in WiFi module allows users to record and share videos, and comes with a Type-C interface for external power supply and data copying at the same time. It supports video recording and exporting. It is mainly used in outdoor night shooting, hunting, outdoor adventure, search and rescue, and can be used instead of a sniper scope to complete night hunting.
|
Model |
TR-IR-LRF NV501Pro
|
|
|
Product Name |
Digital Day & Night Vision Scope
|
|
|
Power Supply |
Power Supply Mode |
One 3.7V Li-ion battery |
|
Voltage Range |
3.5-4.2V |
|
|
Power Consumption |
1.8W |
|
|
Working Time with Battery |
≤8h |
|
|
Objective Lens Parameters |
Magnification |
3.5x |
|
Pixel
|
5M |
|
|
Focal Length
|
35mm (fixed focus), manual focus
|
|
|
Objective Lens Size |
Φ35mm(Φ50mm optional) |
|
|
Field of View |
10.7°×8.0° |
|
|
Eyepiece Lens Parameters |
Entrance Pupil Diameter |
6mm |
|
Magnification Power |
14x |
|
|
Eye Relief |
50 mm |
|
|
Operation Control |
Manual focus |
|
|
Focusing Angle Range |
-5D~+5D |
|
|
System Parameters |
Sensor Resolution |
4K (3840×2160) |
|
Internal RAM |
4Gb |
|
|
Measurement Range |
5~1000m
|
|
|
Video Resolution |
3840X2160@30fps |
|
|
Image Format |
JPG |
|
|
Display Resolution |
1024x768 |
|
|
Display Size |
OLED0.39″ |
|
|
WiFi |
802.11b/g/n |
|
|
Storage Type |
TF Card(Support 4G~128G) |
|
|
Infrared Power/Wavelength
|
2W/3W/5W three gears, 850nm/940nm |
|
|
Geomagnetism |
3-axis Gyroscope |
|
|
Reticle Shape |
Six Types |
|
|
Picture-in-Picture Enhanced Magnification |
Support |
|
|
Video Transmission |
HDMI/WiFi |
|
|
TYPE-C Interface |
Battery Charge and Data Transfer |
|
|
Language |
Chinese / English / Spanish / Portuguese / French / German / Italian / Poland / Turkish / Russian
Turkish / Russianan
Chinese/English/Spain/Portugal/French/German/Italian/Russian |
|
|
Mounting Rails |
Size |
Picatinny rails,20mm/21mm |
|
Reliability |
Mean Time Between Failures |
>50000h |
|
Mechanical Properties |
Dimensions (L*W*H) |
191mm×94mm×50mm |
|
Housing |
Plastic & Aluminium Alloy |
|
|
Body Color |
Black |
|
|
Net Weight |
≈560g
|
|
|
Working Environment |
Operating Temperature |
-20℃~50℃ |
|
Storage Temperature |
-30℃~75℃ |
|
|
|
|
|
|
|
TR-IR-LRF NV501Pro: 1pc
|
USB Type-C Adapter Cable: 1pc |
Battery Charging Stand: 1pc |
Connection adapter: 1pc |
|
|
|
|
|
|
Rail Screw: 4pcs |
screwdriver: 1pc |
Velvet pouch: 1pc |
User Manual |

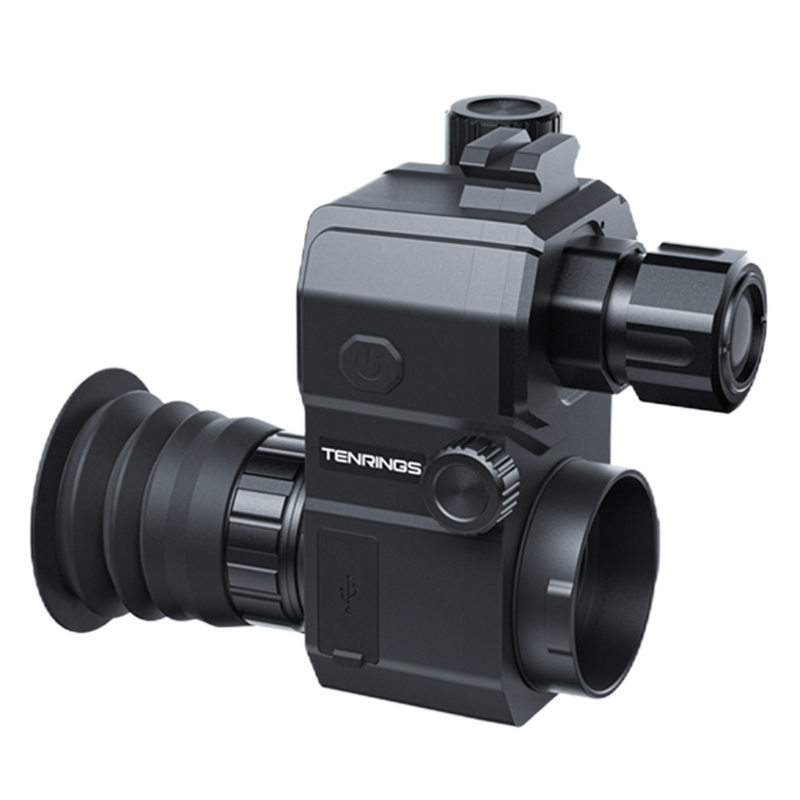

NV200
NV200pro

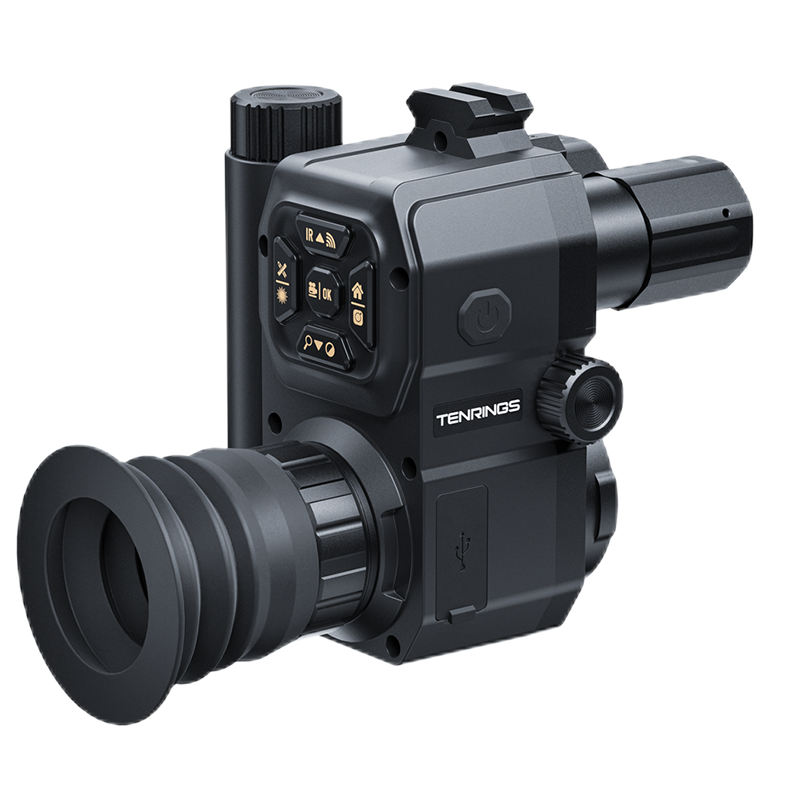

NV201
