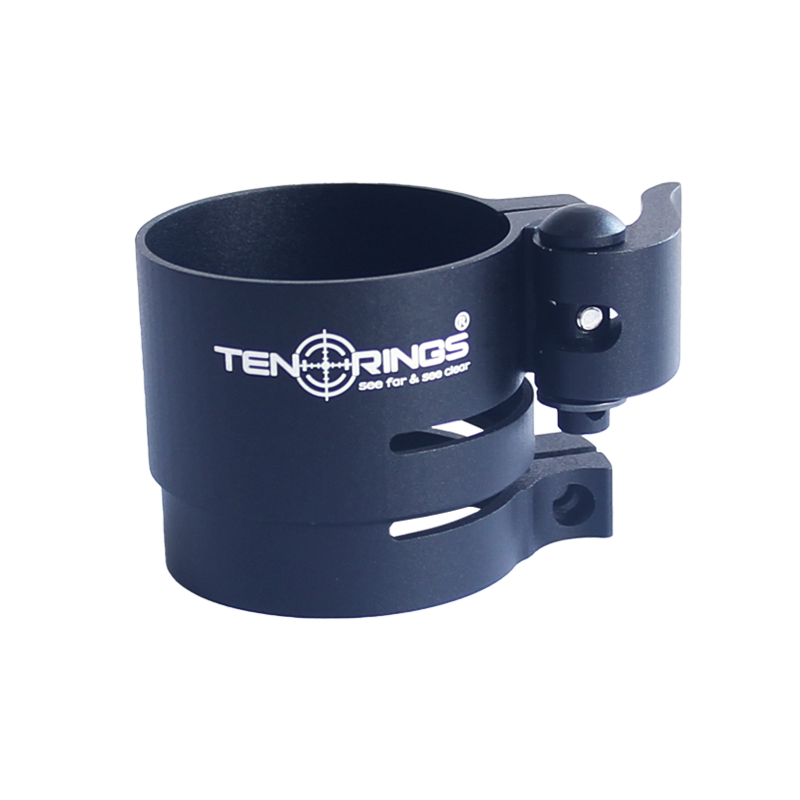

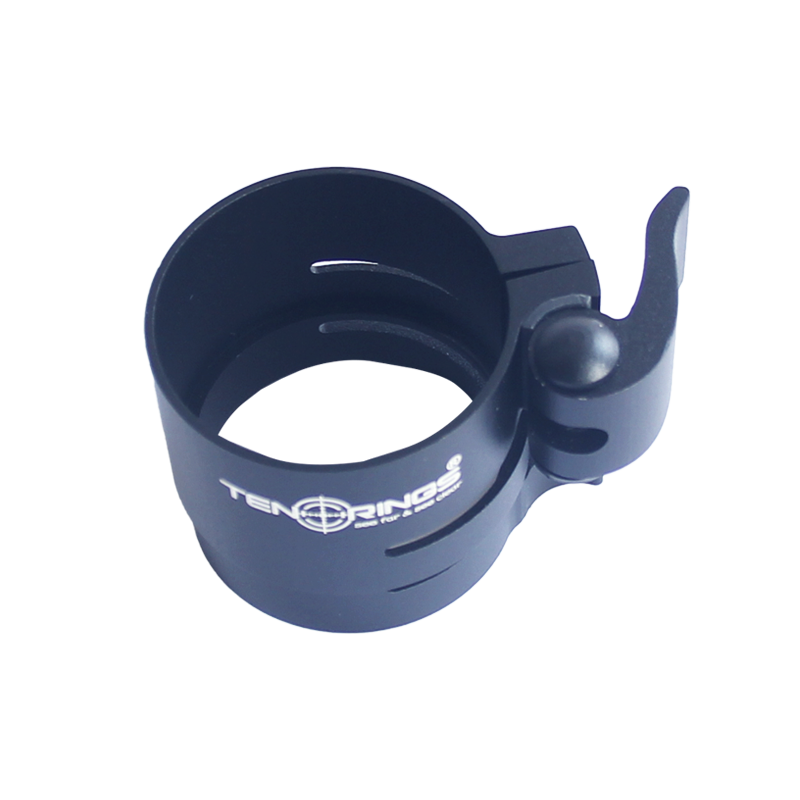

TR-AD48 clip-on Adapter Hunting Accessories
specification
Product name | Adaptor |
Brand | Ten Rings |
Model | TR-AD48 |
Compatible model | TR-IR NV200, TR-IR-LRF NV201 |
Diameter | 48mm |
Material | Aluminum alloy |

How to use?

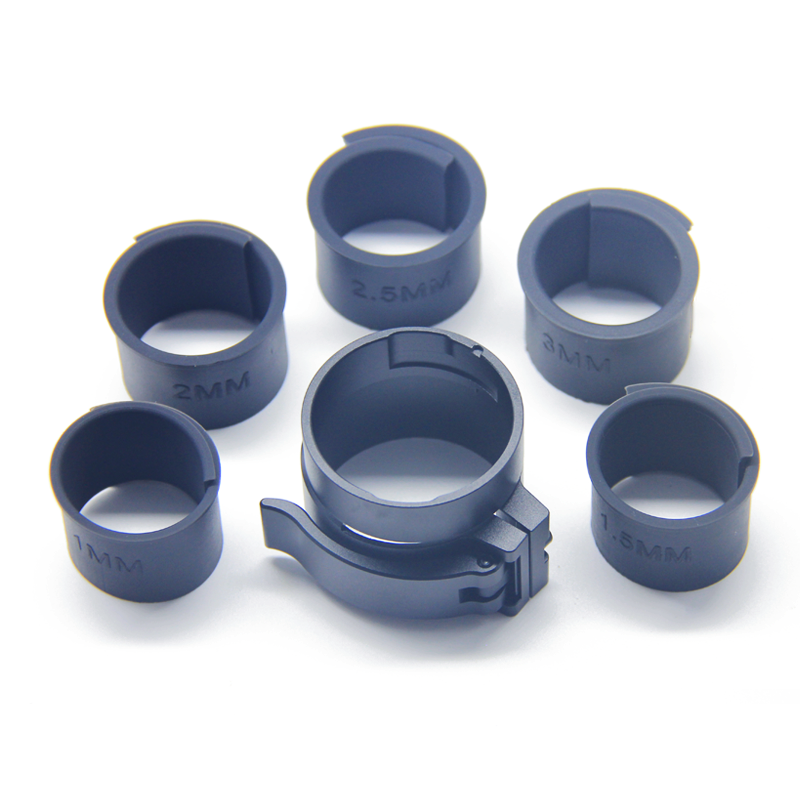

①Release the retainer clip of the adapter and place a shim of appropriate thickness in the adapter, and the raised edge of the shim is stuck with the edge of the adapter;
②Insert the eyepiece of the riflescope into the adapter, ensuring that the edge of the eyepiece aligns with the edge of the shim inside the adapter. Finally, pull the retainer clip of the adapter downwards to secure the adapter firmly to the riflescope;
③Align the two protrusions of the night vision scope with the two depressions in the adapter, insert and rotate clockwise the scope, and after hearing a "click", the installation is finished.
