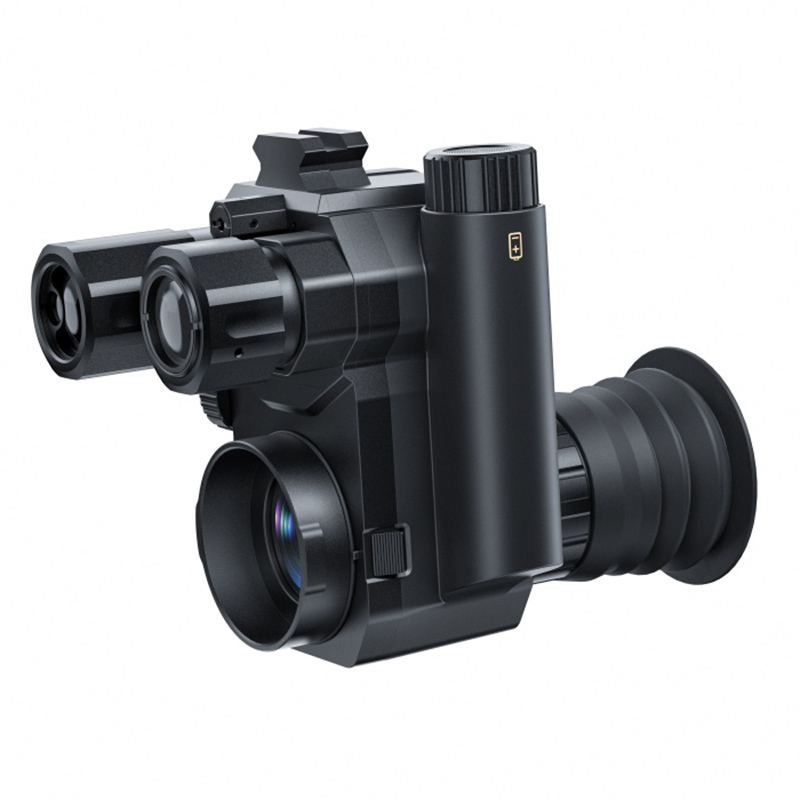

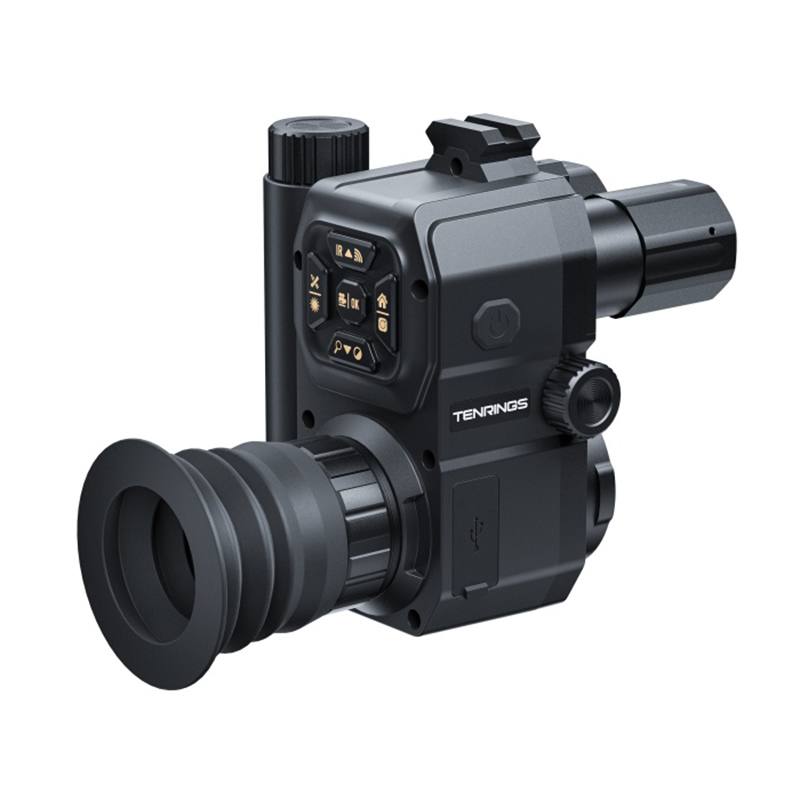

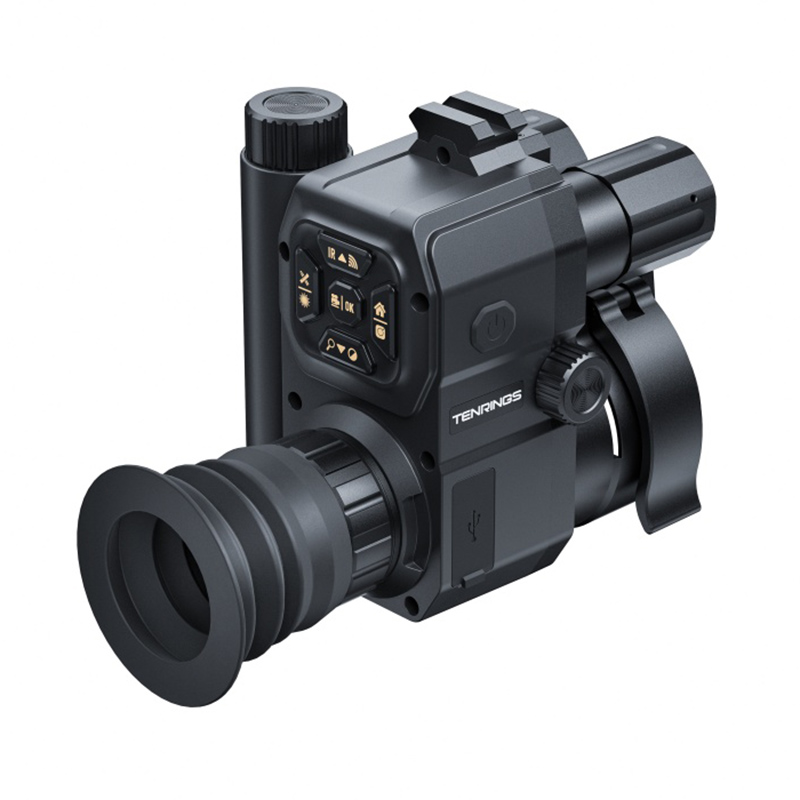

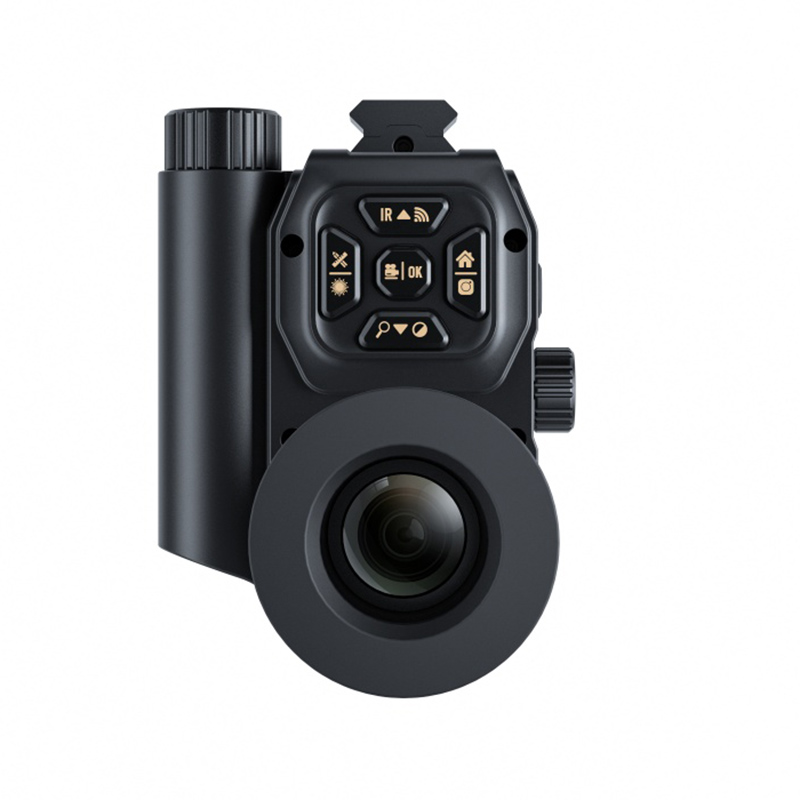

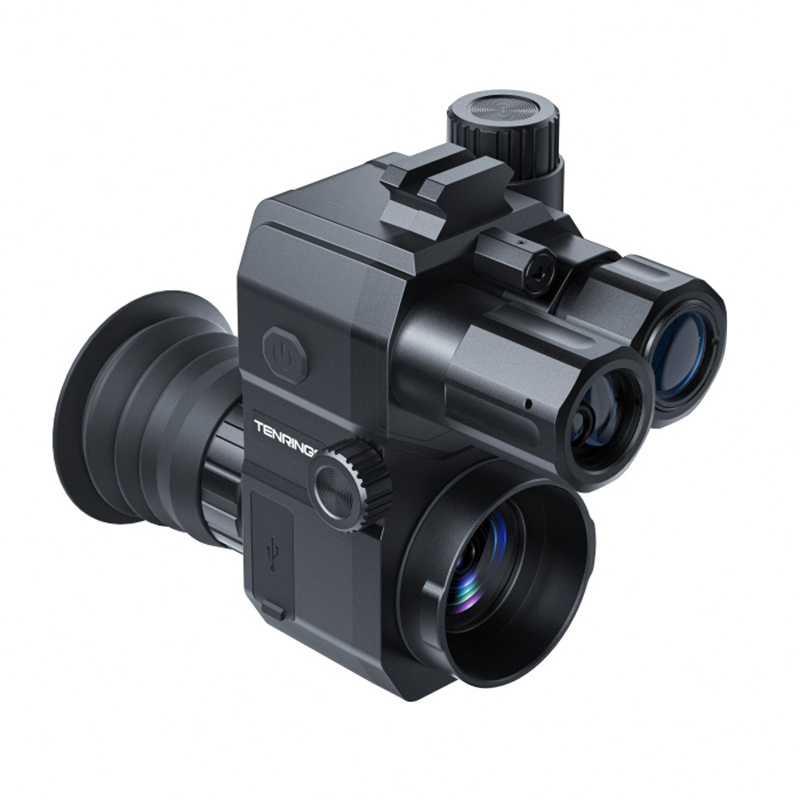

China TR-IR-LRF NV201Pro: Reliable Night Vision Device from Top Suppliers and Factory
Features
- Lightweight and compact design
- In a completely dark environment, the farthest observation distance can reach 300 meters
- Built-in WiFi for downloading and sharing files on Android or IOS smartphones or tablets
- 1024x768 high-resolution display provides clear, rich and vivid color images
- Powered by one 18650 3.7V Li-ion battery for long continuous operation
- 1-5x image magnification, flexible selection according to distance
- Built-in IR-CUT two-color filter to restore the real image of day and night
- With infrared laser ranging function, the longest distance can reach 1000m
- Built-in high-brightness, low-power dimmable IR illuminator, which can clearly restore the subject in the dark scene
- The infrared lens is not easy to react with metal oxides, acidic substances, air and water, and has good light transmission performance
Product Detail
TR-IR-LRF NV201Pro adopts low illumination at night, Sony dynamic CMOS sensor, external IR illuminator, you can obtain excellent observation results both day and night. The novel structure patent design greatly improves the observation effect and observation experience. And the built-in infrared color filter greatly improves the observation effect of the equipment during the day, reduces the overexposure under natural light during the day, and restores more realistically. TR-IR-LRF NV201Pro integrates the laser ranging finder to accurately grasp the target distance while observing or shooting and the ranging distance can reach 1000m.
TR-IR-LRF NV201Pro strengthens the waterproof design and reaches the protection level of IP67. Using a single built-in rechargeable battery with a low power consumption design, the continuous working time can reach more than 5 hours, meeting the requirement of using without changing the battery all night. In addition, it has advanced fast start-up performance, fast imaging in 3 seconds after booting, which significantly improves the user's quick response ability. The high refresh rate design enables the operators to observe fast-moving targets effectively. At the same time, equipped with high-quality and high-performance objective lens, making it ensures safety and reliability without fear of strong light. When installed on a tripod for long-distance night observation, the night observation distance can reach 300 meters, and it can be connected to cameras and wireless image transmission equipment. At the same time, it integrates the ranging function, and realizes the accurate grasp of the target distance while observing.
TR-IR-LRF NV201Pro is a rear clip-on model, that uses an adapter to fix with a rifle scope, equipped with a detachable 905nm infrared rangefinder module, ensuring accurate testing of the target distance. The built-in WiFi module allows users to record and share videos, and comes with a Type-C interface for external power supply and data copying at the same time. With support for video recording and exporting, it is mainly used in outdoor night shooting, hunting, outdoor adventure, search and rescue, and it can be clipped on a sniper scope to complete night hunting.
FAQ
Q
What is the maximum observation range of the TR-IR-LRF NV201Pro in the dark?
In a completely dark environment, the farthest night observation distance can reach up to 300 meters, especially when installed on a tripod.
Q
What is the maximum ranging distance of the integrated laser rangefinder?
The integrated laser rangefinder module (a detachable 905nm module) can accurately measure target distances up to 1000 meters.
Q
What type of battery does it use and how long does it last?
It is powered by a single 18650 3.7V Li-ion battery. Thanks to its low power consumption design, it provides a continuous working time of more than 5 hours.
Q
Is the TR-IR-LRF NV201Pro waterproof?
Yes, the device features a reinforced waterproof design and meets the IP67 protection level, ensuring reliable performance in harsh outdoor conditions.
Q
Can I share videos and photos captured with the device?
Yes, it features a built-in WiFi module that allows you to download and share files directly to Android or iOS smartphones and tablets. It also includes a Type-C interface for data copying.
Q
How does it attach to a rifle scope?
The TR-IR-LRF NV201Pro is designed as a rear clip-on model. It uses an adapter to securely fix onto a rifle scope or sniper scope for night hunting.
specification
| Product name | Adaptor |
| Brand | Ten Rings |
| Model | TR-AD48 |
| Compatible model | TR-IR NV200, TR-IR-LRF NV201 |
| Diameter | 48mm |
| Material | Aluminum alloy |
How to use?
①Release the retainer clip of the adapter and place a shim of appropriate thickness in the adapter, and the raised edge of the shim is stuck with the edge of the adapter;
②Insert the eyepiece of the riflescope into the adapter, ensuring that the edge of the eyepiece aligns with the edge of the shim inside the adapter. Finally, pull the retainer clip of the adapter downwards to secure the adapter firmly to the riflescope;
③Align the two protrusions of the night vision scope with the two depressions in the adapter, insert and rotate clockwise the scope, and after hearing a "click", the installation is finished.
